150,000 lb/hr. Cleaver Brooks Boiler; CW-NB-500D-110; Watertube boiler, 600 PSIG; Year 2020
150,000 lb/hr. Cleaver Brooks Boiler; CW-NB-500D-110; Watertube boiler, 600 PSIG; Year 2020
Manufacturer:
Cleaver Brooks
SKU:
467300
Be the first to review this product

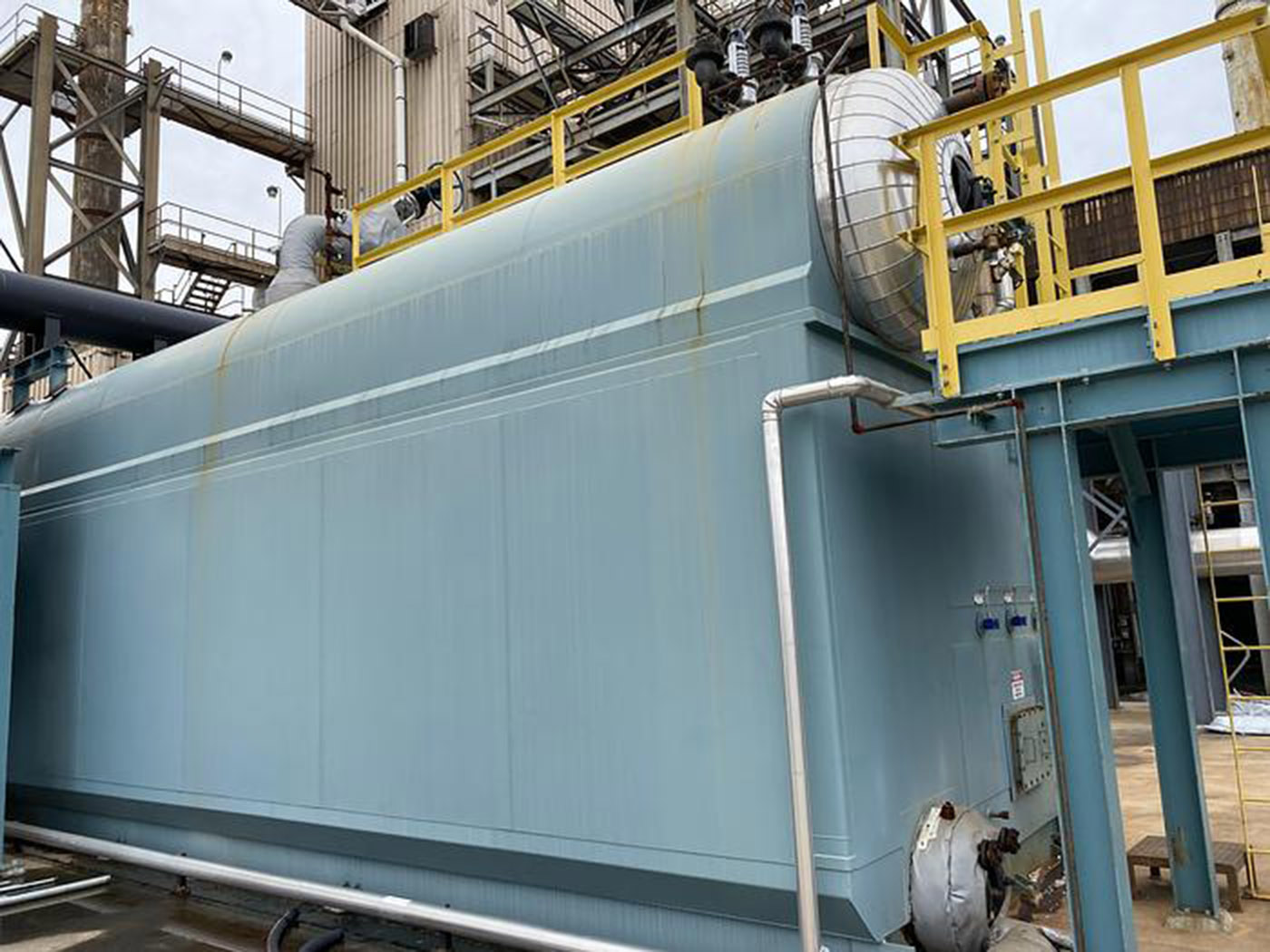

150,000 lb/hr. Cleaver Brooks Model CW-NB-500D-110 D-Type Watertube boiler, Year 2020. Unit rated 150,000 lb/hr at 600 PSIG. Has 7,680 sq ft heating surface. Steel drum is 22.062 inside diameter X 37'-4" long. Boiler tubes are 2" OD, 0.135 MW thickness. Waterwall Headers are (2) FR 3.826" ID Pipe, (1) BR 3.826 ID Pipe, and (1) AD 2.9" ID Pipe. Waterwall tubes are 2" OD. Has an Economasters, LLC economizer. Max rated working pressure 750 PSI, heating surface 13149 sq. ft. Unit equipped with Industrial Burner Model NCB-290-G6B-003-S09-000 Fuel type #1 Natural Gas, Fuel type #2 Light Oil #2.
Qty:
+
-
Add to quote
Add to compare list
Email a friend
Specifications
Reviews
Contact Us
Products specifications
Fuel
Dual Fuel - NG / #2 Oil
Equipment Class
Watertube Package Boiler
Type
D-Type Watertube
