90,000 #/Hr Victory Boiler, 950 PSI MAWP; 650°F Superheat; Year 2018; Model VS-5-78SP-SH
90,000 #/Hr Victory Boiler, 950 PSI MAWP; 650°F Superheat; Year 2018; Model VS-5-78SP-SH
SKU:
467230
Be the first to review this product

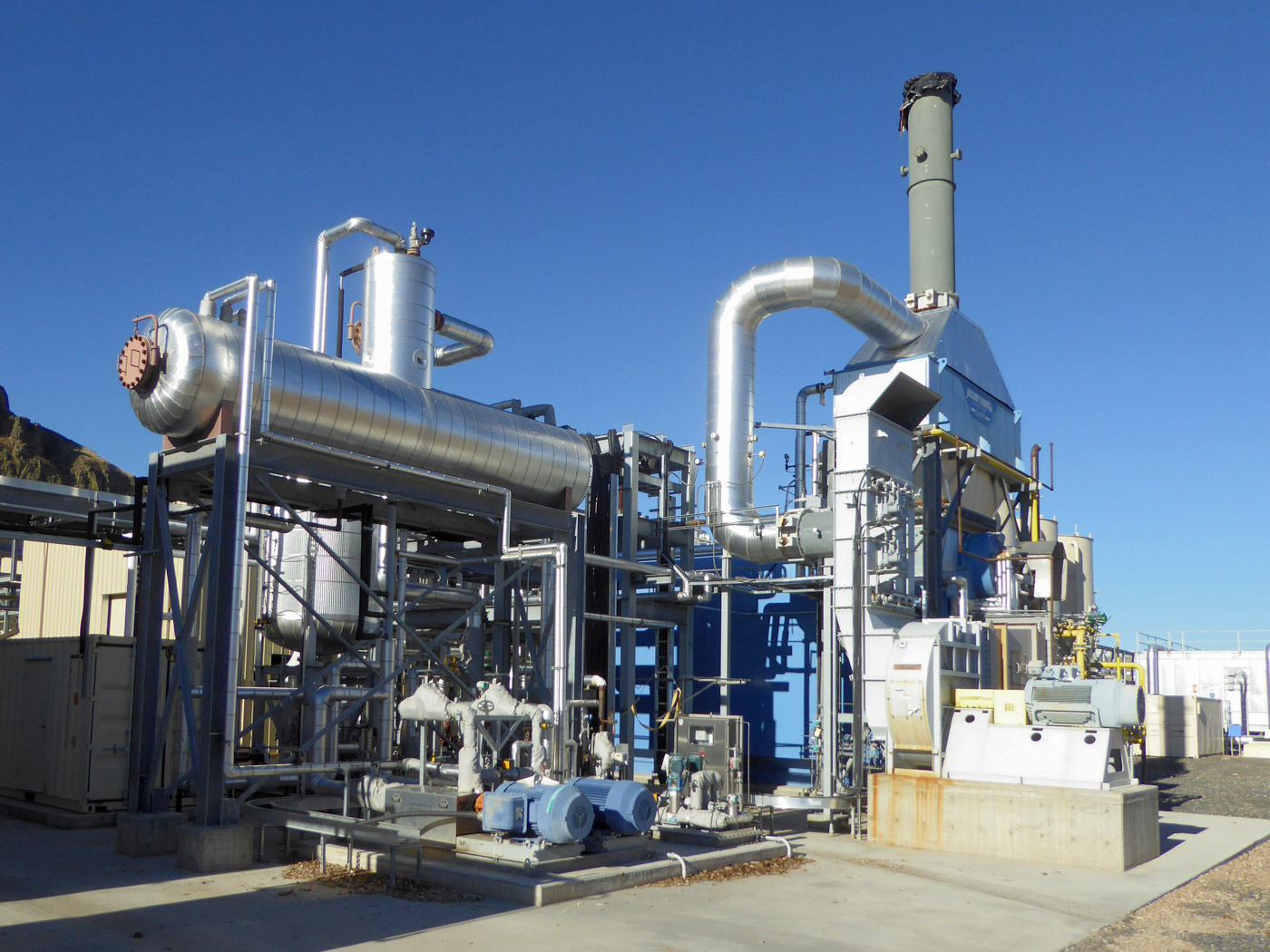

90,000 #/Hr Victory Boiler, Model VS-5-78SP-SH; 837 PSIG Operating Pressure; 526°F Temperature; Year 2018 with COEN Natural Gas, Low NOx Burner. One (1) Shop Assembled Voyager Steam Generator; Heating Surface: Total 7344 Sq.Ft.; Superheater Surface: 980 Sq.Ft.; MAWP: 950 PSIG @ 650°F; Operating Pressure: 837 PSIG @ 526°F; Hydrostatic Test: 1425 PSIG. Feedwater Temperature: 227°F @ Control Valve; Fuel: Natural Gas; Installation: Outdoors; Empty Weight: 186,900 Lbs.; Flooded Weight: 232,000 Lbs.
Qty:
+
-
Add to quote
Add to compare list
Email a friend
Specifications
Reviews
Contact Us
Products specifications
Equipment Class
Watertube Package Boiler
Fuel
Natural Gas
Capacity (Lbs/Hr)
90,000 #/Hr
Pressure
950 PSI Design Pressure
Design Characteristics
850 F Max Temp.
Year
2018
