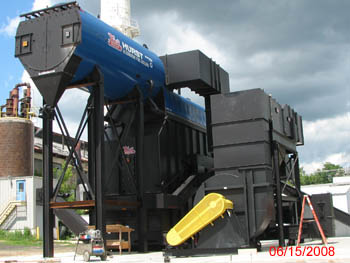

Picture for category BioMass Boilers

BioMass Boilers

Wood Fired Boilers, Agricultural Waste, Green, Sawdust, Carpet Remnants, Bagasse

1500 HP Hurst Boiler Biomass Cogeneration System with 750 kw GTG

126663
1500 HP Hurst Boiler Biomass Cogeneration System with 1.0 MW Erie Steam Turbine. Hurst Boiler Capacity: 51750 Lbs/Hr.; Boiler Surface Area: 9750 Sq.Ft.; Design Pressure: 450 PSI; Model: HYD9750-450-1; Year 2009. Reciprocating Grate style Hurst Combustion Stoker Design. According to Hurst the reciprocating grate-type stoker system permits biomass fuels to be combusted in an efficient manner with the added advantage of automatic de-ashing; and Fuels include: Agricultural biomass wood bark agave fiber rice husk chicken manure sugar cane bagasse king grass MSW construction debris nuts shells husks paper card/board products hog fuel sawdust shavings and/or sludge. This is a complete system with feed conveyors boiler fuel metering DA Tank and Feedwater pumps Steam turbine controls wet ash disposal economizer ducting filter bag houses controls and wiring and (1) fabricated boiler feed storage silo.

50,000 Lbs/Hr. Bio-Mass Gasification / Steam Boiler System

126762
50,000 Lbs/Hr. Bio-Mass Gasification / Steam Boiler System, Integrated by Siemens. Capacity: 50,000 Lbs/Hr. Saturated Steam at a Design Pressure of 150 PSIG. Fuel Consumption: 3.0 Tons/Hr. Blended Waste (Wood Flour and Shredded Polyester), or 5.0 Tons/Hr. Wood Flour. Total Energy: 59.30 – 76.57 MMBtu/hr. The PRME® Gasification Technology is fixed grate, up-draft, sub-stoichiometric and multi-zoned gasification system. A staged combustion process results in hot clean waste gases, which are then used to generate steam for plant consumption, and a waste stream of approximately 300 Lbs./Hr. of Ash. The Primenergy L.L.C. Gasification System includes equipment, instruments and controls designed for the Gasification of carpet waste / wood flour fuel for Syngas delivery to the Energy Recovery boiler. The Gasification System includes: Fuel Bucket Elevator; Reactor Infeed Rotary Airlock; Reactor Infeed Screw; PrimeEnergy KC- 17 Gasifier; Startup Gas Burner; Reactor Underfire Air Fan. According to the manufacturer the PrimeEnergy Gasification process is suitable for wood and wood waste, processed municipal solid waste (RDF), agricultural residues, paper mill sludge, wastewater treatment sludge. Offered separately for this system is a 400 HP Industrial Shredder, Granutech-Saturn Systems Model# M240H, 460V/3PH/60Hz. Chamber Size: 95” x 100”, Rotor Diameter: 20”. Formerly Used on Carpet. Manufacturer states that this model shredder is effective for Plastics, Fiber, Thin Film, Rigid Scrap, Carpet, Medical Waste, Product Destruction, Pallets, Document Destruction. Includes Hydraulic Pump Skid, Feed Conveyor, and was running until shutdown due to process change.
