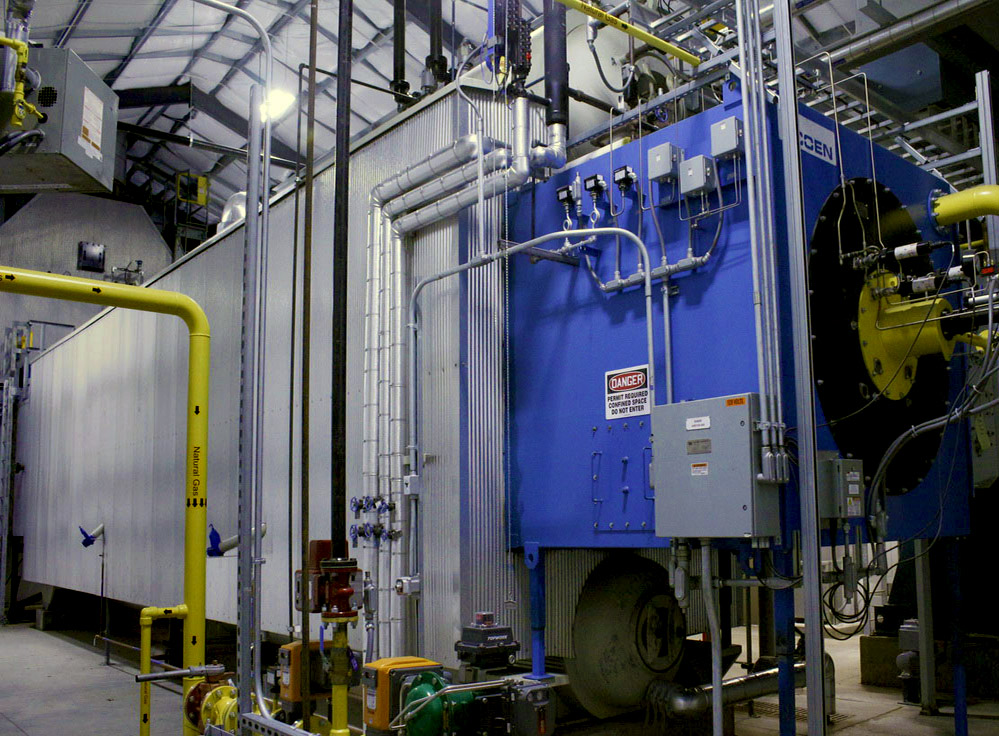

Picture for category Water Tube Boilers

Water Tube Boilers

Used Surplus Water Tube Boilers for Sale.  Industrial Process Package Boilers.

90,000 #/Hr Victory Boiler, 950 PSI MAWP; 650°F Superheat; Year 2018; Model VS-5-78SP-SH

467230
90,000 #/Hr Victory Boiler, Model VS-5-78SP-SH; 837 PSIG Operating Pressure; 526°F Temperature; Year 2018 with COEN Natural Gas, Low NOx Burner. One (1) Shop Assembled Voyager Steam Generator; Heating Surface: Total 7344 Sq.Ft.; Superheater Surface: 980 Sq.Ft.; MAWP: 950 PSIG @ 650°F; Operating Pressure: 837 PSIG @ 526°F; Hydrostatic Test: 1425 PSIG. Feedwater Temperature: 227°F @ Control Valve; Fuel: Natural Gas; Installation: Outdoors; Empty Weight: 186,900 Lbs.; Flooded Weight: 232,000 Lbs.

251000 PPH Deltak HRSG designed for GE LM6000 Gas Turbine Generator

126049
251000 PPH Deltak HRSG designed for GE LM6000 Gas Turbine Generator. New in 2002. Quatity (2). Unused Surplus. 251000 Lbs./Hr. Steam at 950 PSI / 750 deg. F (Fired with Duct Burner). With Low Pressure Drum Capacity of 32000 Lbs./Hr. Steam at 72 PSI / 370 deg. F (Fired). (2) Complete Systems. As originally delivered packages to include: Duct Burner – Natural Gas Fired; HP Superheater; HP Desuperheater; HP Boiler; HP Economizer; LP Superheater; LP Boiler; LP Economizer; Duct Burner Elements; Feedwater Control Valve with Isolation & Bypass Valves; Feedwater Flow Element; Superheater Start Up Valves; Superheater Drain Valves; Desuperheater Stop Valves; Exhaust Expansion Joint; Inlet Gas Ducts; HP Steam Drum & Support Structure; LP Steam Drum & Support Structure; Boiler Trim; Motorized Valves; Walkways & Platforms; Outlet Expansion Joint; Outlet Stack and Transition; Outlet Stack EPA Connections; Outlet Stack Damper with Motor Actuator; HP & LP Boiler Steam Sparging lance with stop valve; Gas Train Fuel Piping Skid; Flame Management System; Feedwater Stop Valves.

50000 PPH Babcock & Wilcox Package Steam Boiler 250 PSI

126096
50000 PPH Babcock & Wilcox Package Steam Boiler 250 PSI Water Tube D-Type Design. 250 PSI @ 406 degrees F temperature. Heat Side 3763 SqFt Water Wall 647 SqFt. Boiler has been re-tubed with low hours. Upgraded with Coen burners Model BMS 2000 20D-12440-1 with flame safety system #6 oil or natural gas fired with 10% flue gas recirculation. Coen 2000 burner control system with PLC operators station. Control system standard features include dual flame safe guard first out annunciator NEMA 4 rating U.L. Approved components CSA Approved components Water Column relays Scanner meters Dual fuel capability with low fire fuel changeover. Boiler is skid mounted design. Two (2) available boilers (See IEN #126097). Part of complete Steam Plant in very good condition with DA Tank #6 Fuel Oil Heater Water treatment Boiler Feed Pumps and more. 100000 Lbs/Hr. steam Total steam plant capacity.

100000 Lb/Hr. Complete Steam Plant. Includes Two (2) 50000 PPH

126097
100000 Lb/Hr. Complete Steam Plant. Includes Two (2) 50000 PPH Babcock & Wilcox Package Steam Boiler 250 PSI Water Tube D-Type Design. 250 PSI @ 406 degrees F temperature. Heat Side 3763 SqFt Water Wall 647 SqFt. Boiler has been re-tubed with low hours. Upgraded with Coen burners Model BMS 2000 20D-12440-1 with flame safety system #6 oil or natural gas fired with 10% flue gas recirculation. Coen 2000 burner control system with PLC operators station. Control system standard features include dual flame safe guard first out annunciator NEMA 4 rating U.L. Approved components CSA Approved components Water Column relays Scanner meters Dual fuel capability with low fire fuel changeover. Boiler is skid mounted design. One (1) Boiler of Two (2) available. The entire plant is in good condition with DA Tank #6 Fuel Oil Heater Water treatment Boiler Feed Pumps PLC Controls and more. 100000 Lbs/Hr. steam Total steam plant capacity.

74500 Lb/Hr. Nebraska Boiler Model: NS-E-66 Water Tube Boiler

126220
74500 Lb/Hr. Nebraska Boiler Model: NS-E-66 Water Tube Boiler Design Pressure: 250 PSI Year 1993. Natural Gas Fired Boiler Sq. Ft.: 4873 Economizer and Stack Included. DA Tank and Feedwater Pumps Available Separately.

80000 Lb/Hr. Nebraska Boiler Model NS-F-72 Water Tube Boiler

126221
80000 Lb/Hr. Nebraska Boiler Model NS-F-72 Water Tube Boiler Design Pressure: 250 PSI Year 1998. Natural Gas Fired Coen DFL-600 Burner Boiler Surface Sq.Ft.: 6474. Includes ERI Economizer Stack FD Fan and Motor. Boiler Design Capacity: 100000 Lbs/Hr. is limited by Burner / Fan size to 80000 Lb/Hr. All Available Drawings and Engineering Included. Feedwater Pumps and DA Tank Available Separately. Three (3) Identical Boilers Available as part of Complete Steam Plant.

80000 Lb/Hr. Nebraska Boiler Model NS-F-72 Water Tube Boiler

126222
80000 Lb/Hr. Nebraska Boiler Model NS-F-72 Water Tube Boiler Design Pressure: 250 PSI Year 1998. Natural Gas Fired Coen DFL-600 Burner Boiler Surface Sq.Ft.: 6474. Includes ERI Economizer Stack FD Fan and Motor. Boiler Design Capacity: 100000 Lbs/Hr. is limited by Burner / Fan size to 80000 Lb/Hr. All Available Drawings and Engineering Included. Feedwater Pumps and DA Tank Available Separately. Three (3) Identical Boilers Available as part of Complete Steam Plant.

80000 Lb/Hr. Nebraska Boiler Model NS-F-72 Water Tube Boiler

126223
80000 Lb/Hr. Nebraska Boiler Model NS-F-72 Water Tube Boiler Design Pressure: 250 PSI Year 1998. Natural Gas Fired Coen DFL-600 Burner Boiler Surface Sq.Ft.: 6474. Includes ERI Economizer Stack FD Fan and Motor. Boiler Design Capacity: 100000 Lbs/Hr. is limited by Burner / Fan size to 80000 Lb/Hr. All Available Drawings and Engineering Included. Feedwater Pumps and DA Tank Available Separately. Three (3) Identical Boilers Available as part of Complete Steam Plant.

315000 Lbs./Hr. Nebraska Boiler Steam Plant 250 PSI Design

126224
315000 Lbs./Hr. Nebraska Boiler Steam Plant 250 PSI Design Pressure Natural Gas Fired complete with DA Tank Water Treatment and Feed Water Pumps. Includes: Three (3) 80000 Lb/Hr. Nebraska Boilers Model NS-F-72 Water Tube Boilers Design Pressure: 250 PSI Year 1998. Natural Gas Fired Coen DFL-600 Burners Boiler Surface Sq.Ft.: 6474 / Each. Includes ERI Economizer Stack FD Fan and Motor. Boiler Design Capacity: 100000 Lbs/Hr. is limited by Burner / Fan size to 80000 Lb/Hr. All Available Drawings and Engineering Included. Additional 74500 Lb/Hr 250 PSI Nebraska Boiler available separately or included with this plant at the same location with separate DA Tank and Feedwater Pumps. All boilers are available separately or in a package.

27587 Lbs/Hr. (800 HP) 290 PSIG MAWP RENTECH WaterTube Bio-mass Boiler

126334
27587 Lbs/Hr. (800 HP) 290 PSIG MAWP RENTECH WaterTube Bio-mass Boiler. UNUSED Surplus Never Installed. Constructed in strict accordance with ASME code Section I 2010 edition 2011 addenda. Stamped and registered with the national board. MAWP: 290 PSIG/FV; Hydrotest Pressure: 435 PSIG; Design Temperature 500°F (700°F TUBES); Weight: 65000 LBS (Dry) 92000 LBS (Full) 87000 LBS (Operating). Dimensions: 23'-6" L x 8'-3/4" W x 13'-3" H. Built Year 2012. Includes Hoppers Boiler trim and Catwalks. See Drawings for more details. Available Due to Cancelled Project.

230000 Lbs/Hr. (104 MT/hour) 1200 PSI (82.7 Bar) Operating Presssure

126807
230000 Lbs/Hr. (104 MT/hour) 1200 PSI (82.7 Bar) Operating Pressure and 925℉ (496℃) Temperature. Alstom Industrial Package Boiler Model 43A16-48” Year 2002. Includes a Dual Fuel Natcom Hypermix (335 MMBtu/Hr) Low NOx Burner for Natural Gas or Diesel #2 fuel. Fireye Burner Safety and UV Flame Scanner. The high pressure package boiler has an A-Frame design with a 48” Diameter Steam Drum rated for 1400 PSIG (96.5 Bar) MAWP and two (2) 18” diameter mud drums. Manufacturer: Alstom Power Energy Recovery. Includes Boiler Valves and Instrumentation and all available drawings and manuals. Dimensions: 54’ L x 21’ H x 13’ W. Dry Weight: 347000 Lbs.

214000 Lbs/Hr. Cleaver Brooks / Nebraska; Natural Gas Water

126817
214000 Lbs/Hr. Cleaver Brooks / Nebraska; Natural Gas Water Tube Boiler. Rated for 450 PSI Design Pressure; 650 F Design Temp; 360 PSI Operating Pressure; 590 F Operating Temp with 227F Feedwater Temperature.

Fuel: Natural Gas at 285mm BTU/hr. 8 to 1 Turndown. Low NOx burner. Year 2011 / Installed 2013.

Only has 80 Hours of use in service testing. Includes Deaerator; All controls; FD Fan; Economizer and Stack.

Weight: 142423 Lbs Dry

Dimensions: 42’-6.5” L x 12’-10.5” W x 15’-11” H

Rentech Waste Heat Recovery Boiler

467063
WHRU – Rentech Hot Water Boiler rated for 690,000 lbs. water an hour (1,377 GPM). A combustion exhaust stream is used to heat approximately 690,000 pounds of water per hour from 170 °F to 225 °F at an ambient condition of 55 °F. Designed for use with a Solar Turbines, Taurus 70 Gas Turbine Generator.

77,000 Lb/Hr. Nebraska Boiler; MAWP: 300 PSI; Low NOx

467140
77,000 Lb/Hr. Nebraska Boiler Model: NS-E-63; MAWP: 300 PSI; Year 1996. Low NOx Coen Burner. BMS 2000 Burner Controls. Natural Gas Fired; Water Tube Boiler Design; Surface Area: 5346 Sq. Ft.; Economizer and Stack Included. DA Tank and Feedwater Pumps Available Separately.

150,000 lb/hr. Cleaver Brooks Boiler; CW-NB-500D-110; Watertube boiler, 600 PSIG; Year 2020

467300
150,000 lb/hr. Cleaver Brooks Model CW-NB-500D-110 D-Type Watertube boiler, Year 2020. Unit rated 150,000 lb/hr at 600 PSIG. Has 7,680 sq ft heating surface. Steel drum is 22.062 inside diameter X 37'-4" long. Boiler tubes are 2" OD, 0.135 MW thickness. Waterwall Headers are (2) FR 3.826" ID Pipe, (1) BR 3.826 ID Pipe, and (1) AD 2.9" ID Pipe. Waterwall tubes are 2" OD. Has an Economasters, LLC economizer. Max rated working pressure 750 PSI, heating surface 13149 sq. ft. Unit equipped with Industrial Burner Model NCB-290-G6B-003-S09-000 Fuel type #1 Natural Gas, Fuel type #2 Light Oil #2.

5000 PPH Cleaver Brooks FLX 700/600 Water Tube Boiler

467028
Cleaver Brooks Model: FLX 700/600 Water Tube Boiler. 4,950 Lb/Hr. Steam Capacity, 150 PSI Pressure, Year 2019. Fuel: Natural Gas, Rated at 6,000,000 BTU/hr., Quantity Two (2).
